General Information

• Snap-in mounting from front
• Solder terminal or quick connect
from single terminal
• Protection class 1
• Integral plug retention feature

Technical Data

Rating: 16A/250VAC
Insulation Resistance
10MΩ (500VDC, 1 Min.)
Dielectric Strength:
2KV (50Hz 1 Min) to accessible surfaces
Materials Socket:
Black Thermoplastic UL94V-0

Approvals

16 A/250VAC: ENEC 05,
KEMA KEUR
20 A/250VAC: UL

Patent Information

UK Number: 2463468B
EU Number: EP2321879A
HK Number: HK1141901
Chinese Patent Application No:
CN 102150330 A

Other worldwide patents pending

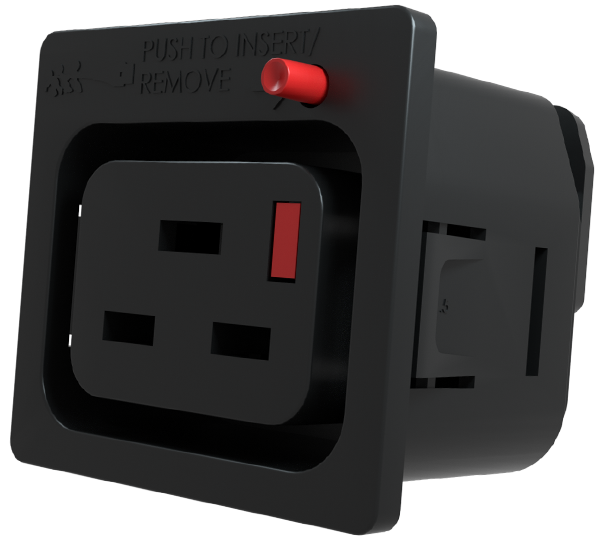

Product

• Black & White IEC320 Snap in 1mm or
1.5mm Panel Thickness
• Quick Connector/Solder 6.3 x 0.8mm
