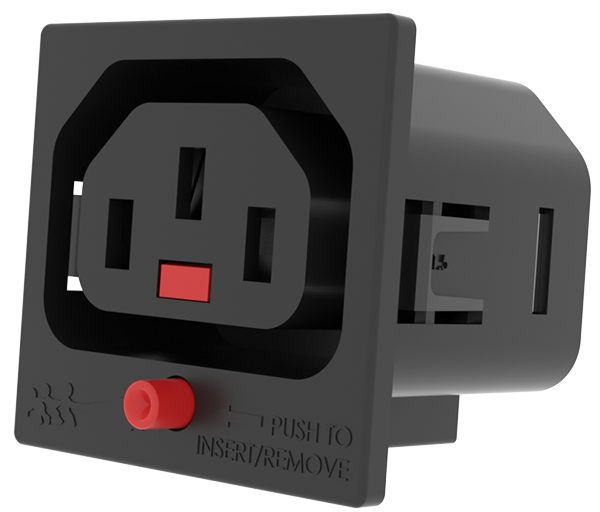

C13 Locking Outlet

_

Release locking mechanism
PREVENTS ACCIDENTAL DISCONNECTION
NYLON LSZH
C13 LOCKABLE OUTLET

Technical Information

_

General Information

• Snap-in mounting from front
• Solder terminal or quick connect
from single terminal
• Protection class 1
• Integral plug retention feature

Technical Data

Rating: 16A/250VAC
Insulation Resistance
10MΩ (500VDC, 1 Min.)
Dielectric Strength:
2KV (50Hz 1 Min) to accessible surfaces
Materials Socket:
Black Thermoplastic UL94V-0

Approvals

10 A/250VAC: ENEC 05,
KEMA KEUR
15 A/250VAC: UL

Patent Information

UK Number: 2463468B
EU Number: EP2321879A
HK Number: HK1141901
Chinese Patent Application No:
CN 102150330 A

Other worldwide patents pending

Product

• Black & White IEC320 Snap in 1mm or
1.5mm Panel Thickness
• Quick Connector/Solder 6.3 x 0.8mm

Standards

IEC/EN 60320-2-2/F UL498
CSA C22.2 No 182.3-M1987

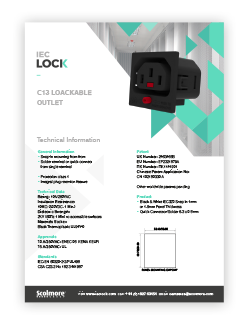

Download a PDF of the technical information here

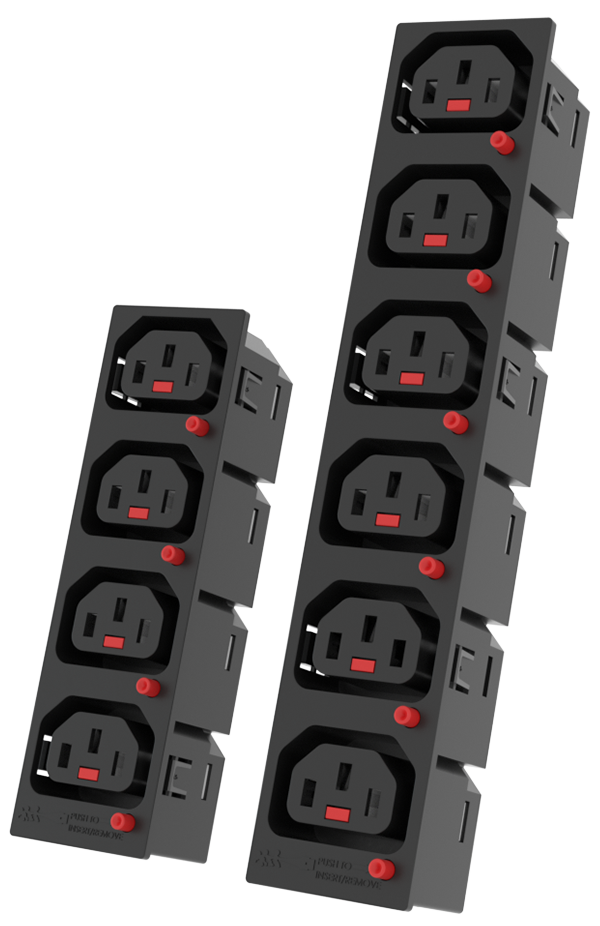

C13 Multi-tier Locking

_


"The average cost of a data centre outage rose in 2016 to $740,357, representing a 7% increase since 2013."

Technical Information

_

General Information

• Snap-in mounting from front
• Solder terminal or quick connect
from single terminal
• Protection class 1
• Integral plug retention feature

Technical Data

Rating: 10A European Rated, 15A cUL Rated
Insulation Resistance:
10MΩ (500VDC, 1 Min.)
Dielectric Strength:
2KV (50Hz 1 Min) to accessible surfaces
Materials Socket:
Black Polyamide 66 (PA66) UL94V-0

Approvals

10 A/250VAC: ENEC 05,
KEMA KEUR
15 A/250VAC: cUL

Patent Information

UK Number: 2463468B
EU Number: EP2321879A
HK Number: HK1141901
Chinese Patent Application No:
CN 102150330 A

Other worldwide patents pending

Product

• Black IEC320 Snap in 1.5mm Panel Thickness.
• Quick Connector/Solder 6.3 x 0.8mm

Standards

• IEC/EN 60320-2-2/F UL498
• CSA C22.2 No 182.3-M1987

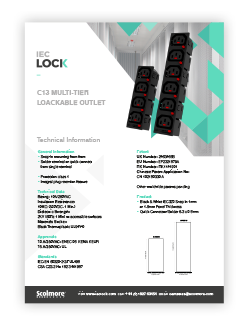

Download a PDF of the technical information here
